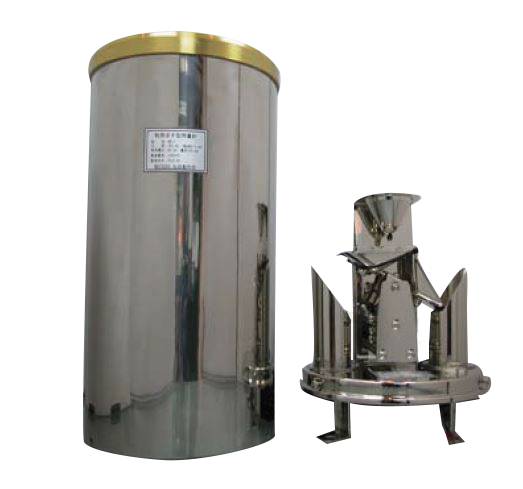

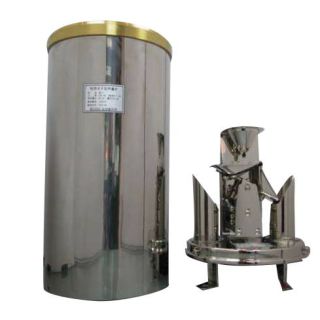

Stainless Tipping Bucket Rain Gauge
Product Number：NET-205A
When rainfall drops into tipping bucket through water filter, the buckets tips by the weight equivalents to 0.5mm or 1.0mm.
When rainfall drops into tipping bucket through water filter, the buckets tips by the weight equivalents to 0.5mm or 1.0mm. At every tipping motion of the bucket, electric circuit is closed for 0.1~0.2 seconds by reed switch to generate pulse.
| Aperture of Rain receiver | Ø 200 mm，edge≦ 30° |
| Accuracy | 20 mm/h and under : ± 0.5 mm 20 mm/h~120 mm/h：within ± 3% |
| Resolution | 0.5 mm(Option：1.0mm) |
